橋田
QT-005

Able to support a load weighing up to 8kg

With 6 air channels and 1 module mounting surface, and self-sealing at robot side

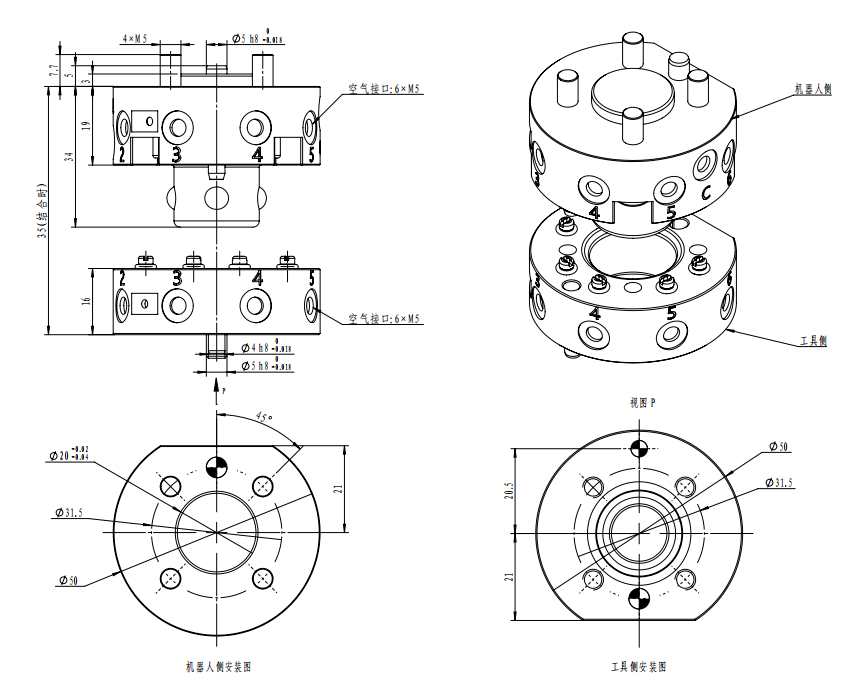

Overall dimension: Φ50mm×H35mm

Equipped with a basic IO module, a face detection module, and a high frequency module

Main bodyPayload8kg
Repeat accuracy±0.02mm
Static Moment CapacityBending moment18N·m
Torque moment18N·m
MaterialMain bodyAluminium alloy
Locking mechanismSteel alloy
Shape size (locked)φ50mmxH35mm
Product weightRobot side body111g
Tool side body64g
Lock/Unlock mechanismSpring-loaded self-resettling mechanism
Lock/Unlock Pressure0.45~0.8MPa(5~8kgf/m2)
Permitted temperature and humidity0-55°C,0-95%
Control bodyGeneralAir port6xM5
Cylinder motion sensorLock sensor/
Unlock sensor/
In-place sensorConfirm that the tool is in place/
